Flat Back D Shaped Clamps for 6mm, 8mm, 10mm, and 12mm Glass

Zinc Alloy Flat Back D shaped clamps for glass balustrades. Suitable for flat post, walls, and floors. Clamps complete with gaskets and reinforced screws. M8 interface fixing screws not provided.

• Glass Specification: Suitable for 6mm, 8mm, 10mm, and 12mm glass (Glass Reduction Required).
• Material Specification: Zinc Alloy

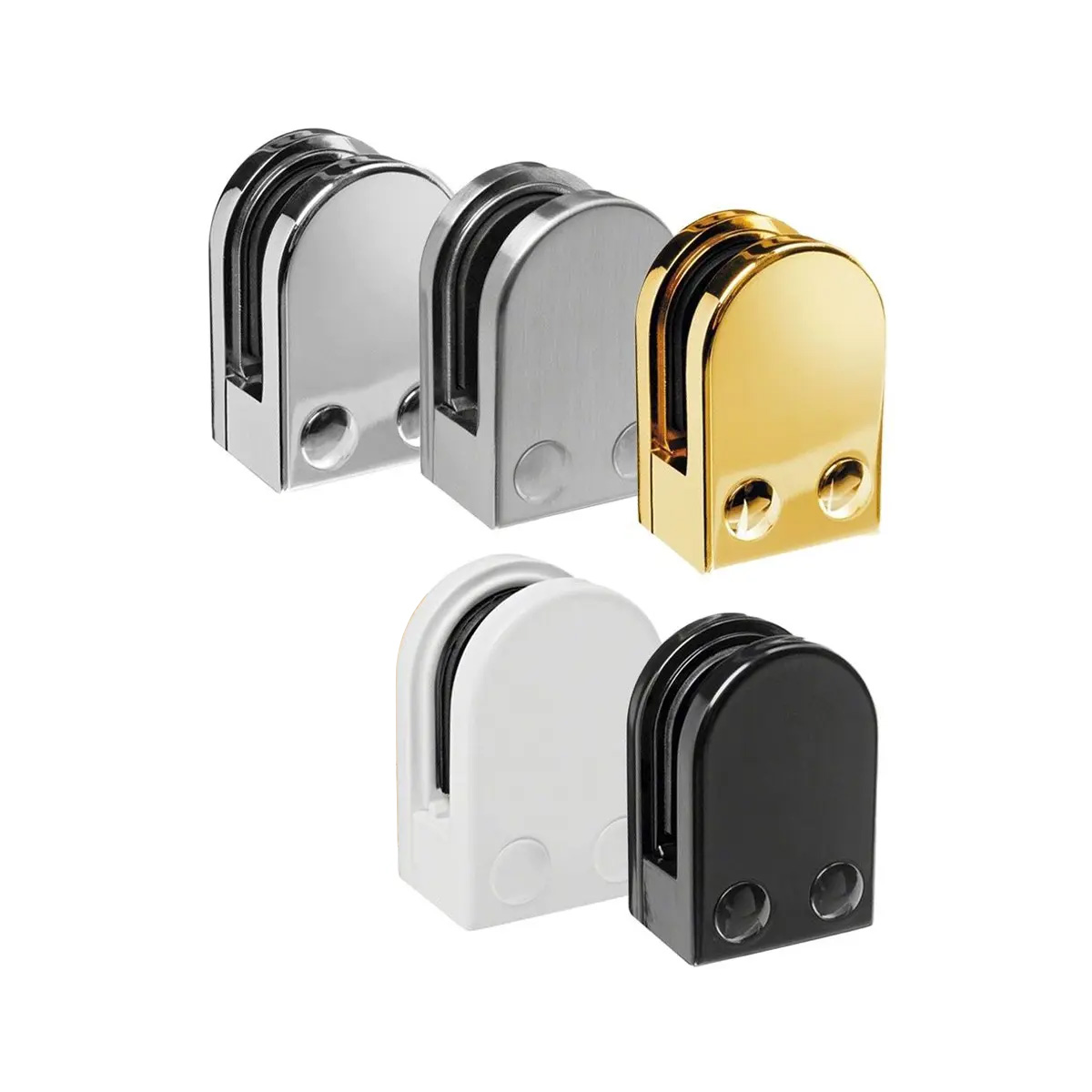

• Finish(s): Chrome Plated, Sating Effect, Polished Brass, Matt Brass, Black, White
• Design Compatibility: Suitable for Partitions, Balustrade and General Frameless Glass Structures.
• Supplied with:
  • 2 x Reinforced Screws
  • 2 x Screw Cover Caps
  • 2 x Gaskets
  • 1 x Securing Pin

Assembly Instructions

The type of the screw needed will vary depending on the type of surface you’re fixing the glass clamp to (e.g. stainless steel post, wall, floor…). The Hexagon Socket Head Cap Screw (M8), shown below, is the standard screw to be used when fixing the glass clamps to steel posts. You may want to choose the correct fixing screw with similar dimension as this.

Below is a typical glass clamp application, displaying the recommended positions for fixing the glass clamps. However, some customers prefer fixing the clamps on top and bottom.

*Max. Size depends on glass type, thickness, and wind factor (when using outdoor).
** For safety reason, we suggest using the Secure Pin (supplied with your clamps) when the glass panel is fixed to the outside of a staircase and is overhanging.

* Zinc Alloy and SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

** For safety reason, we suggest the Secure Pin (sold separately) to be used when the glass panel is fixed to the outside of a staircase and overhanging.
