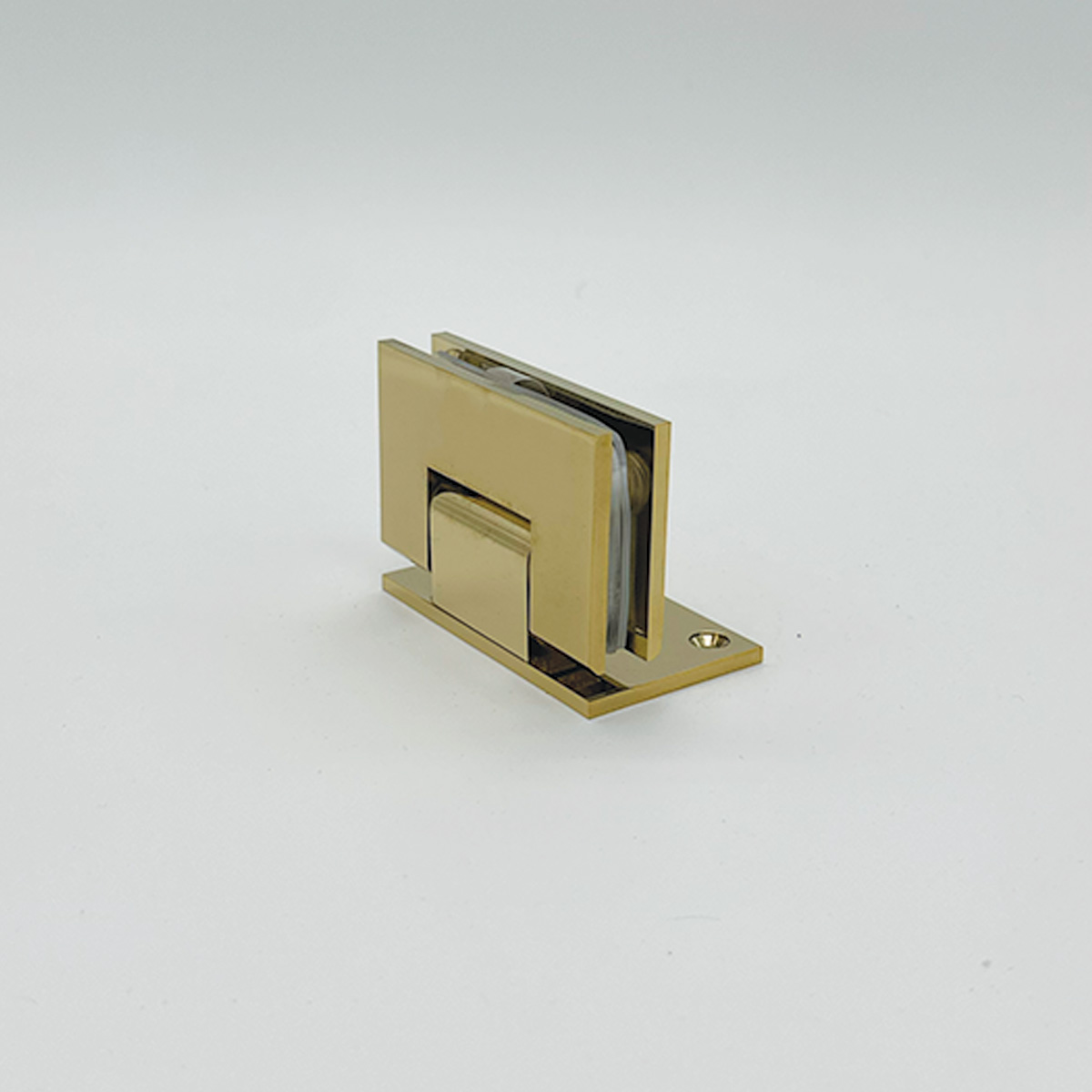

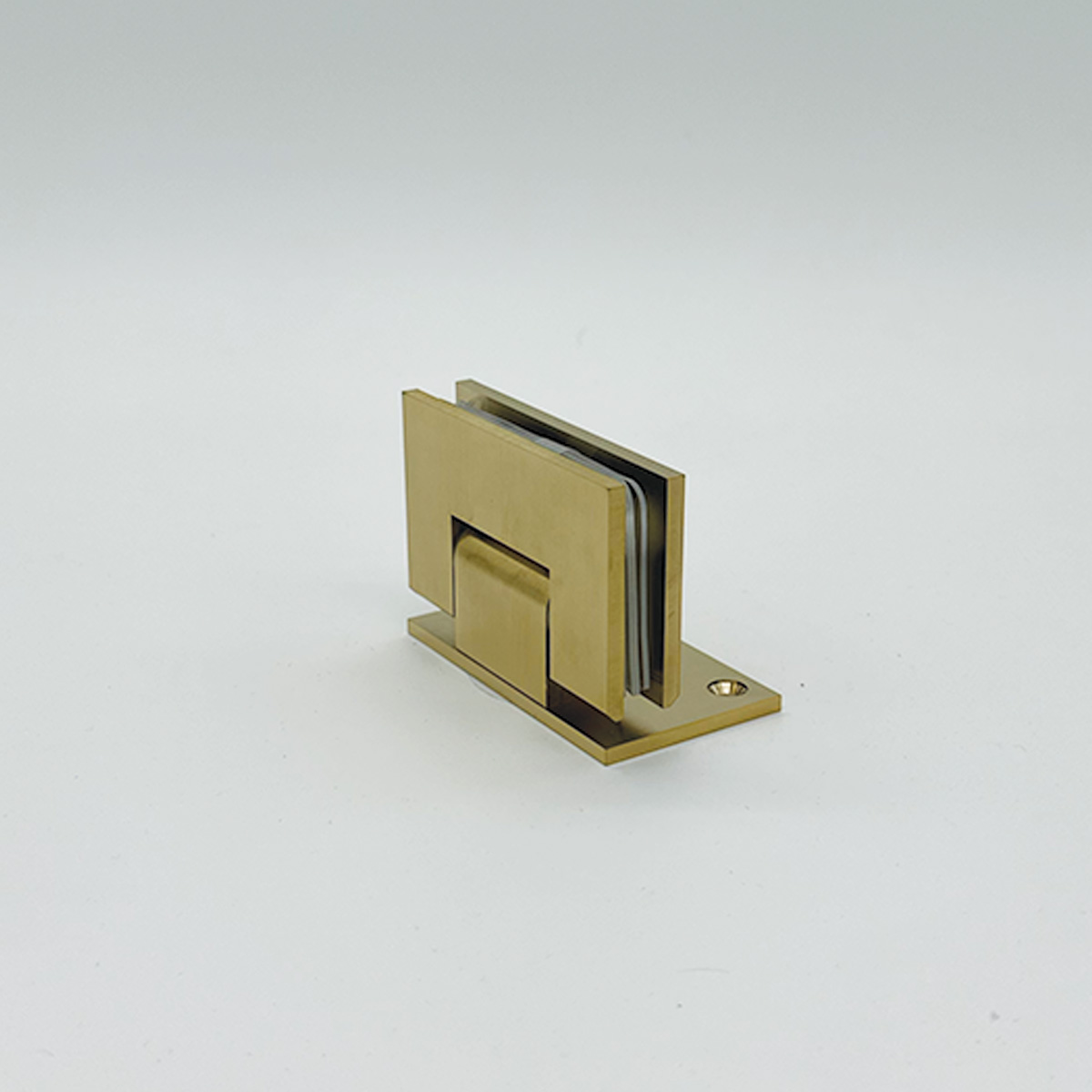

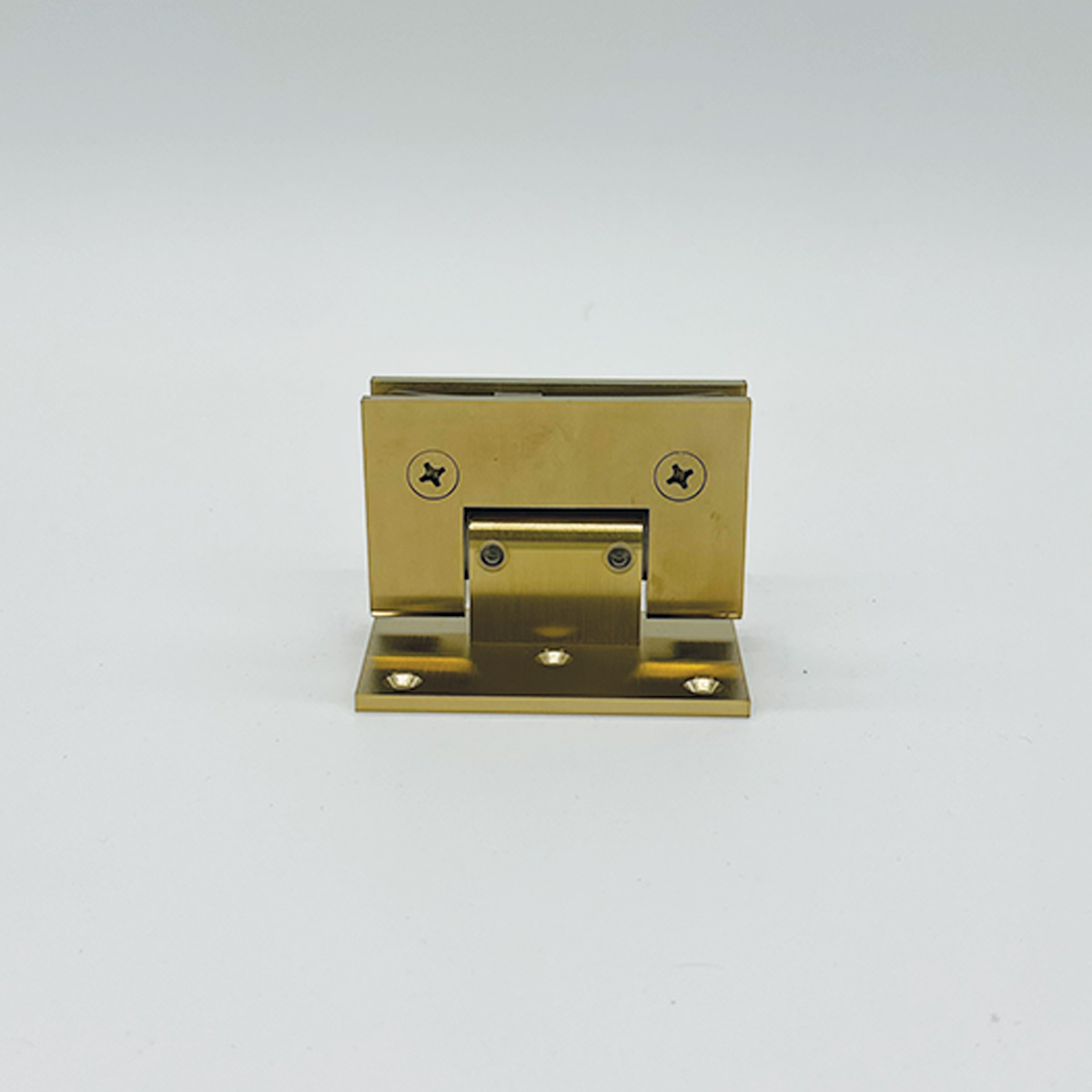

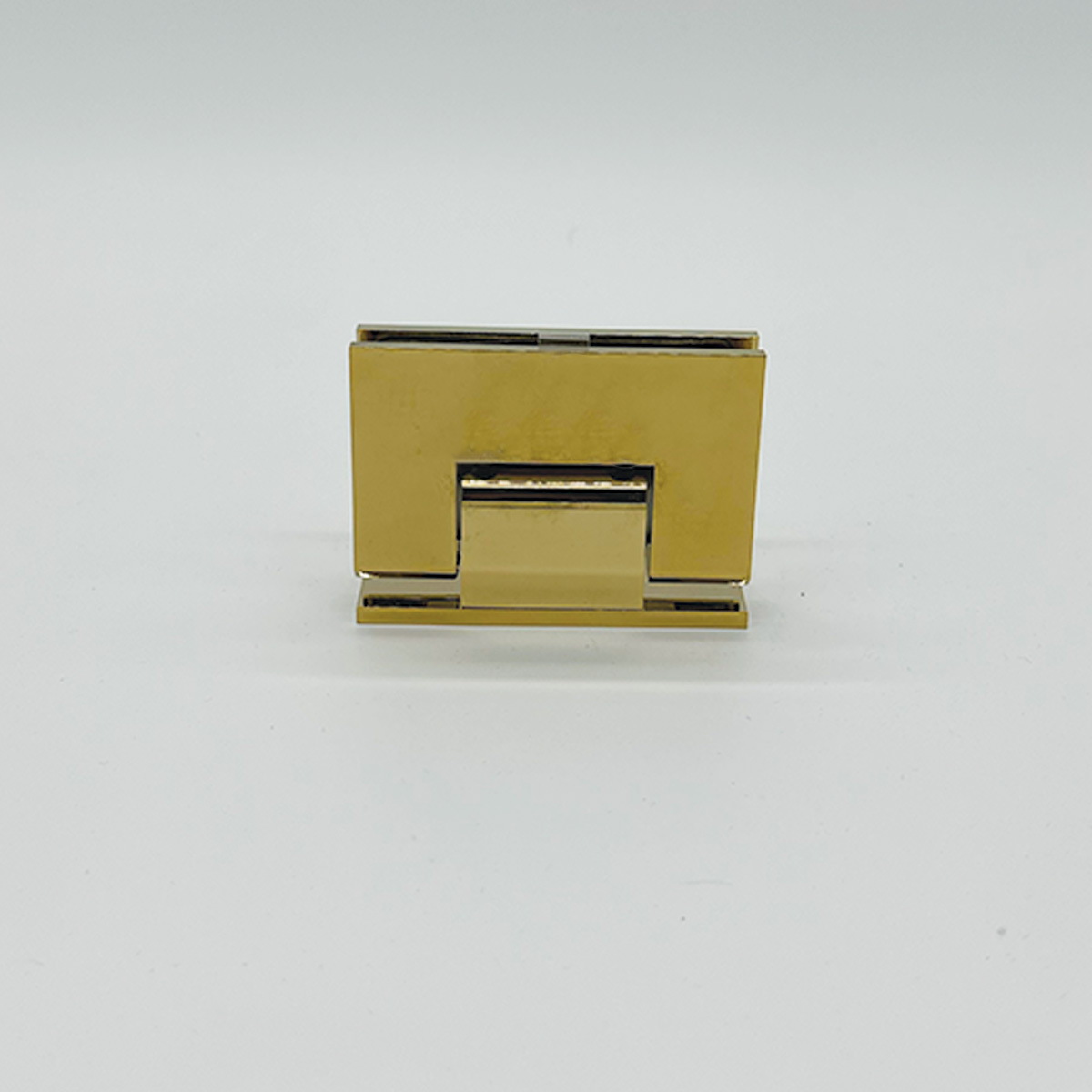

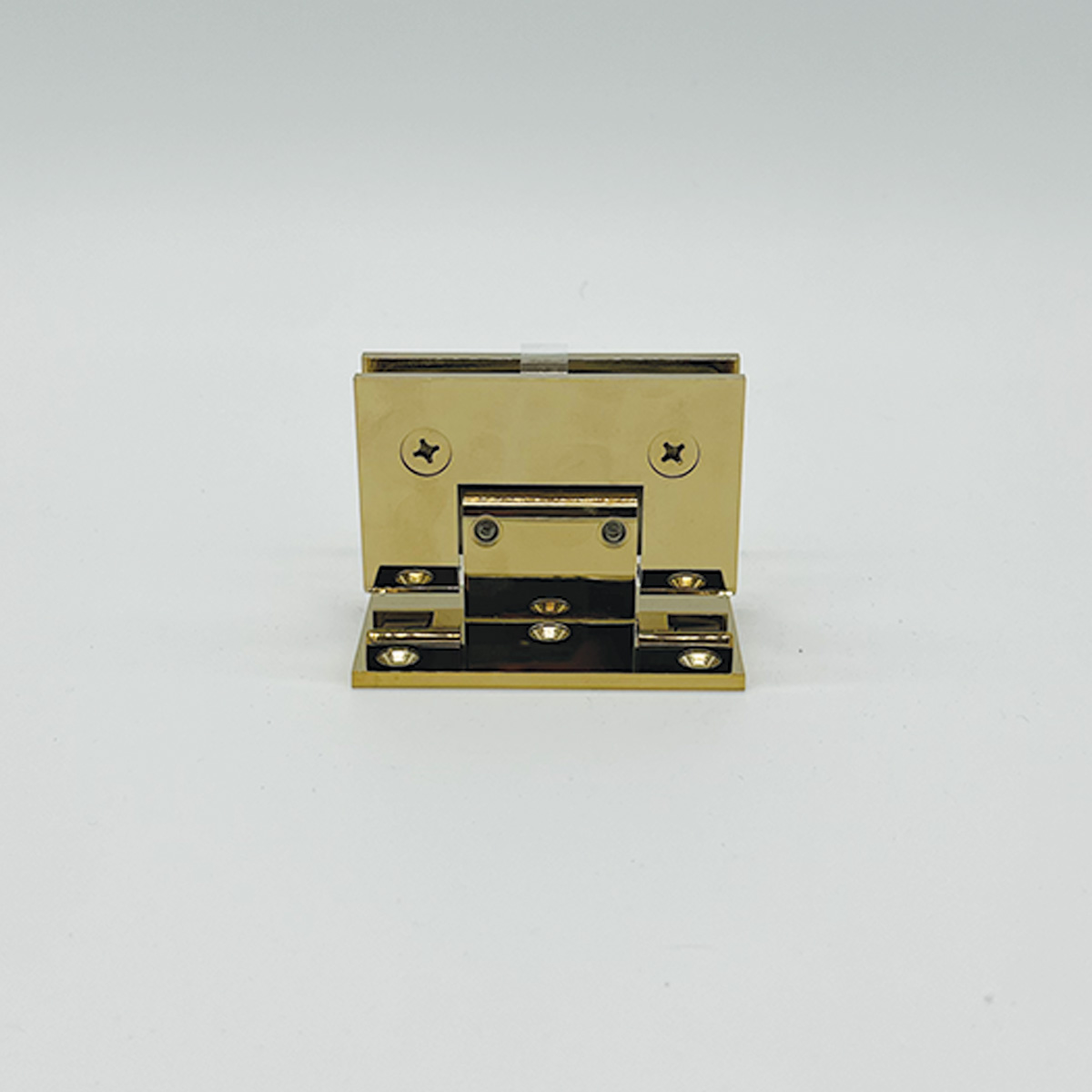

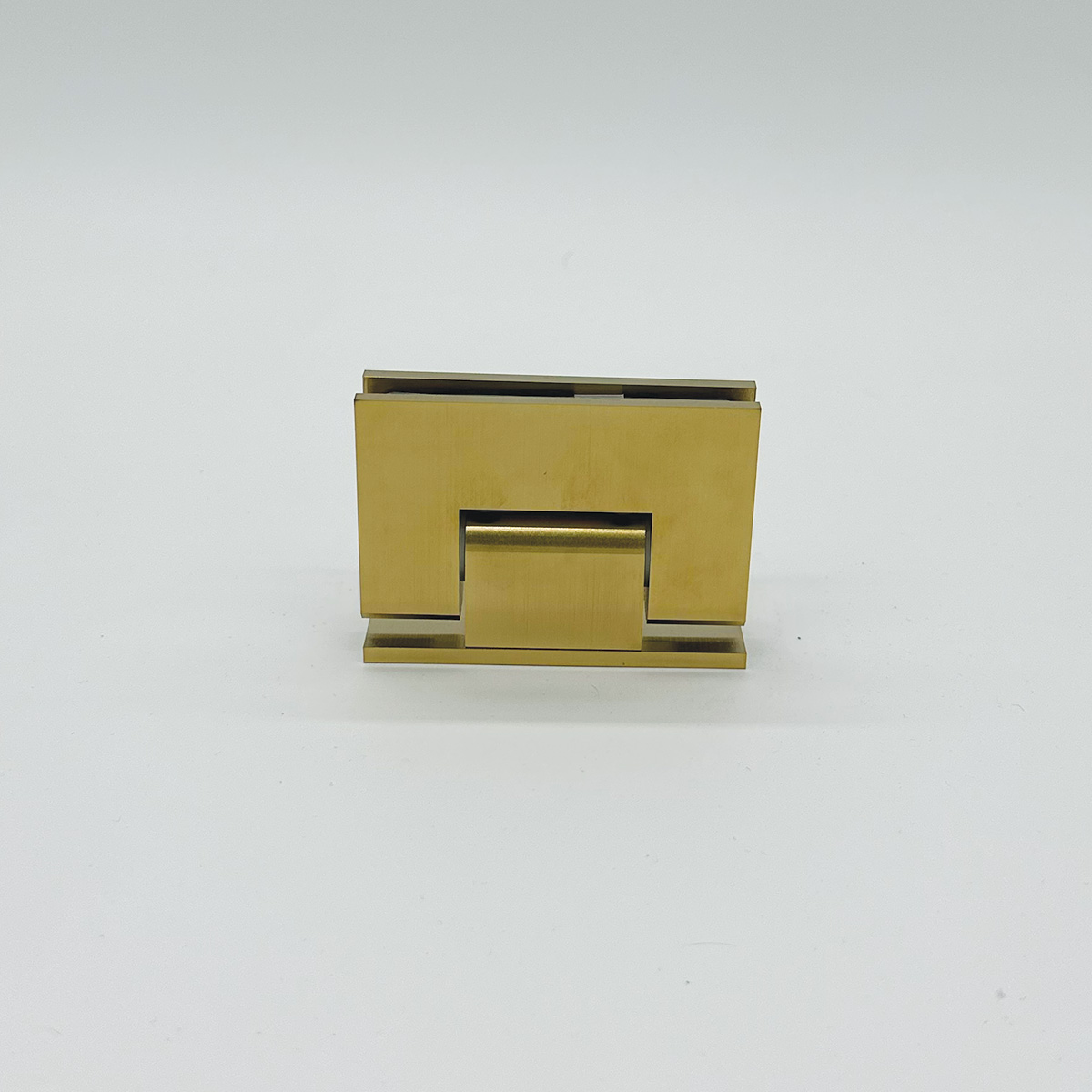

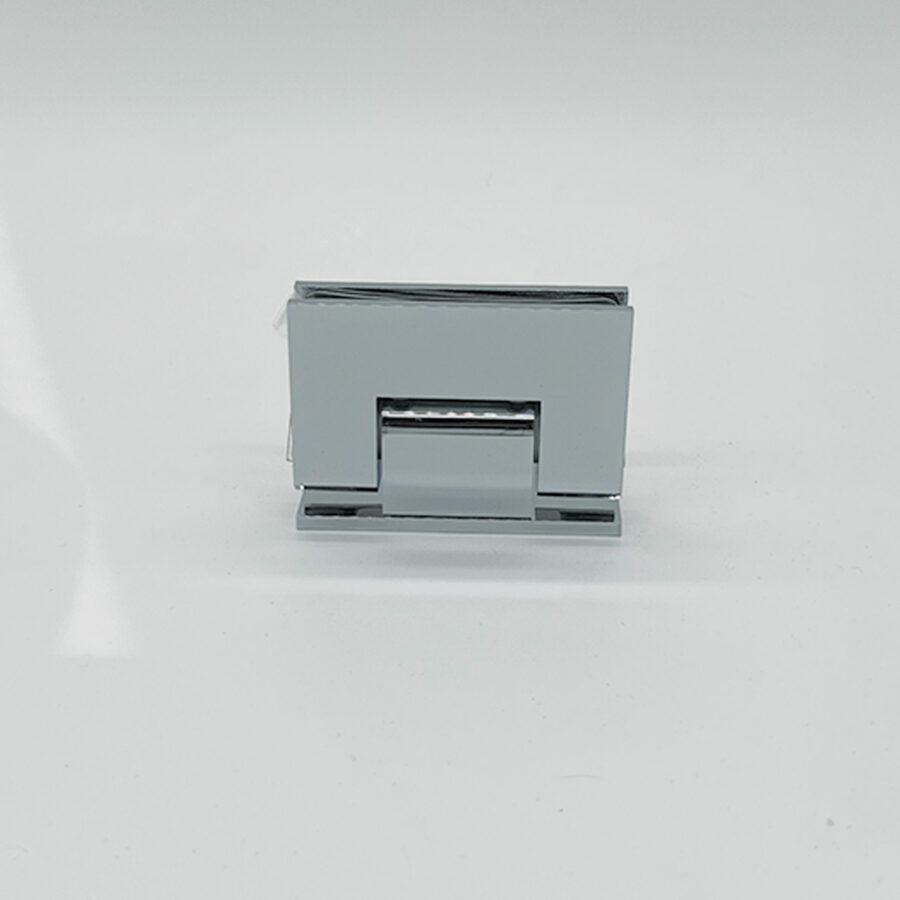

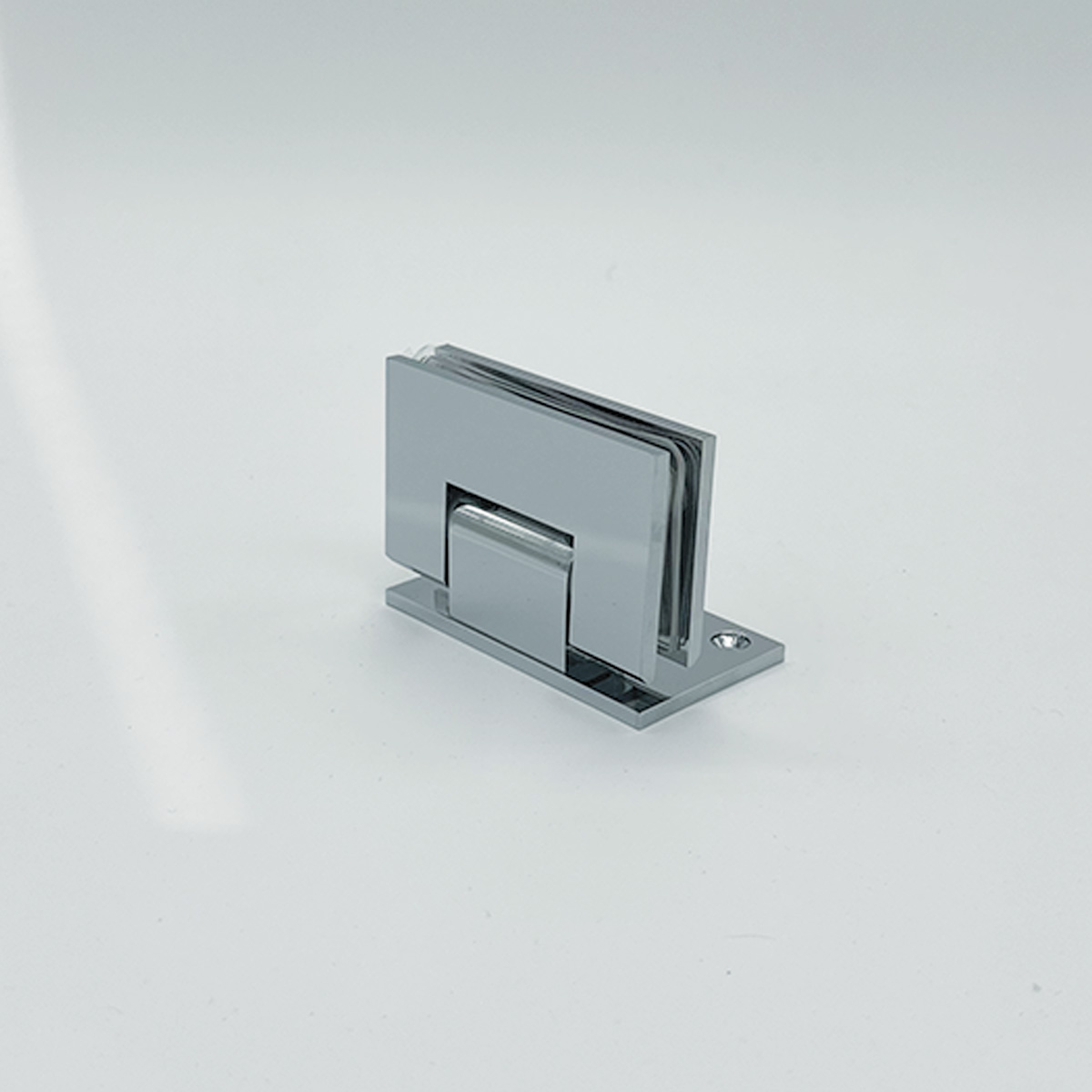

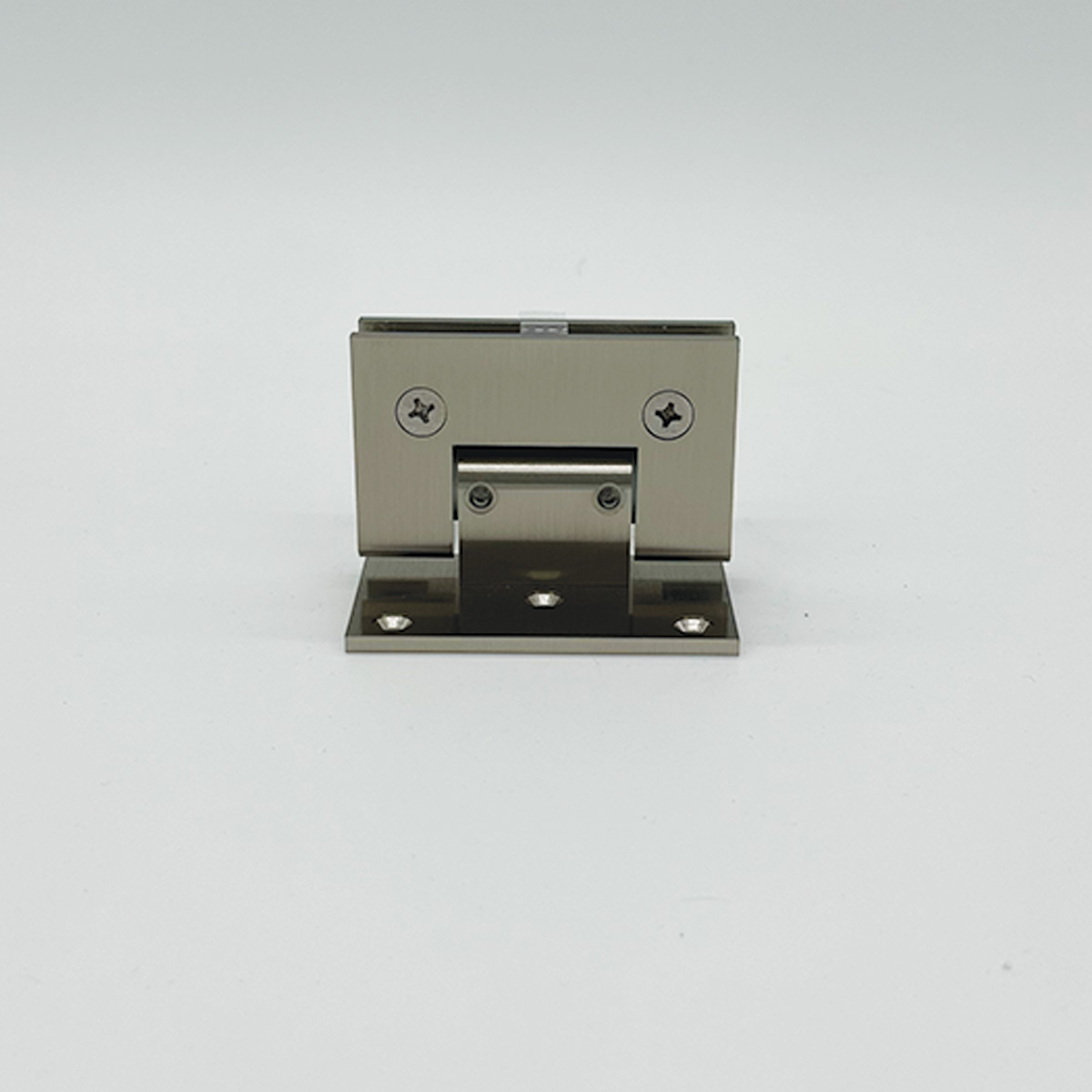

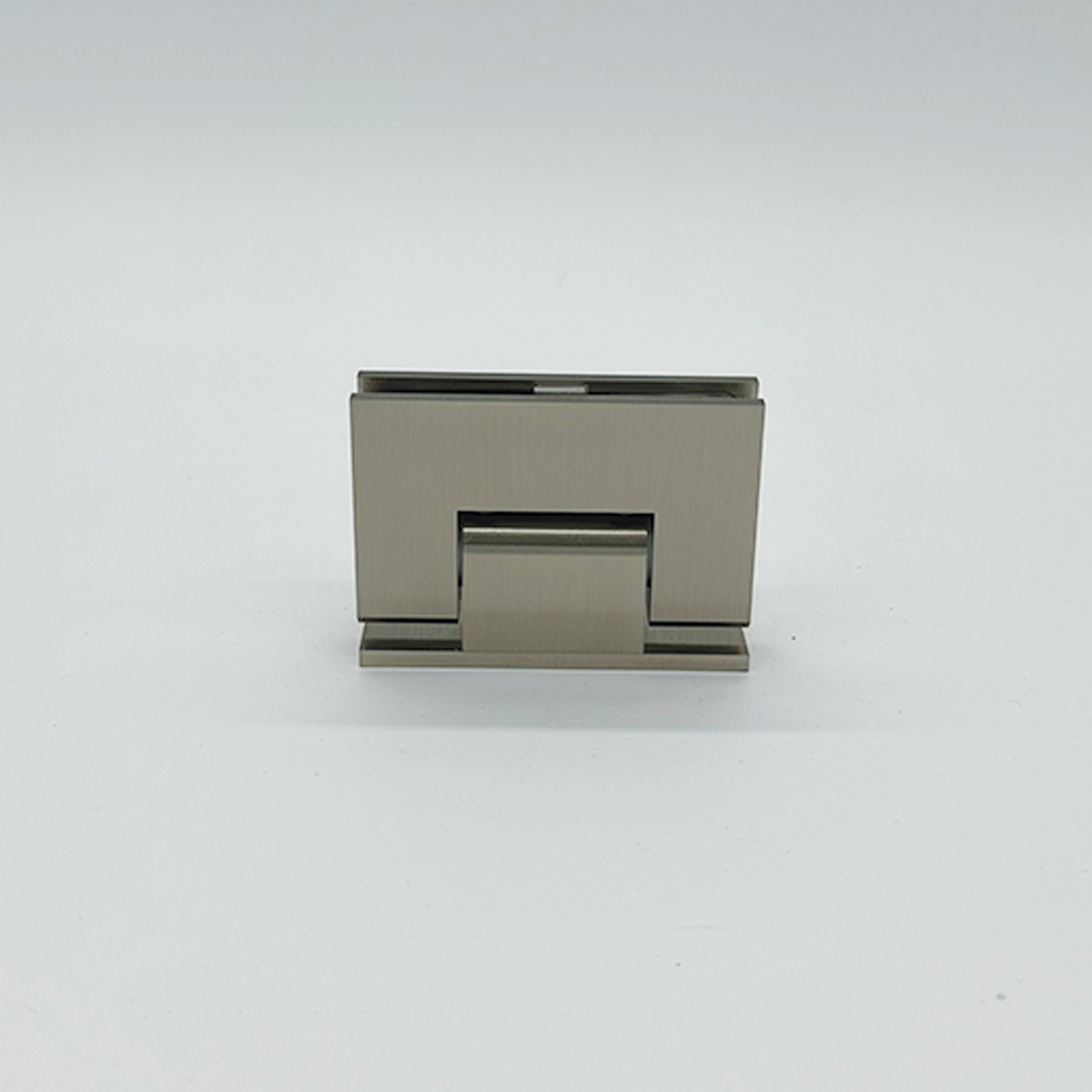

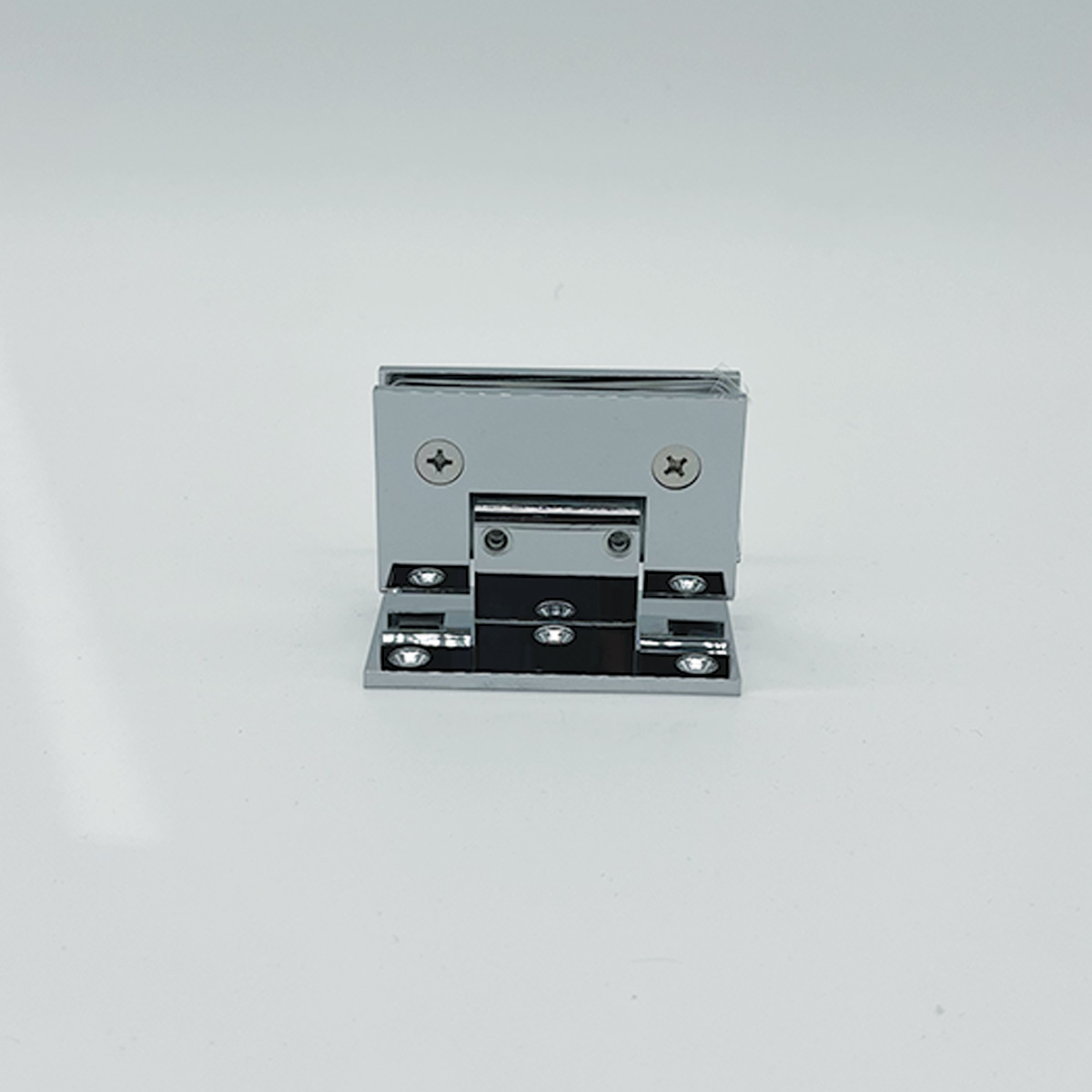

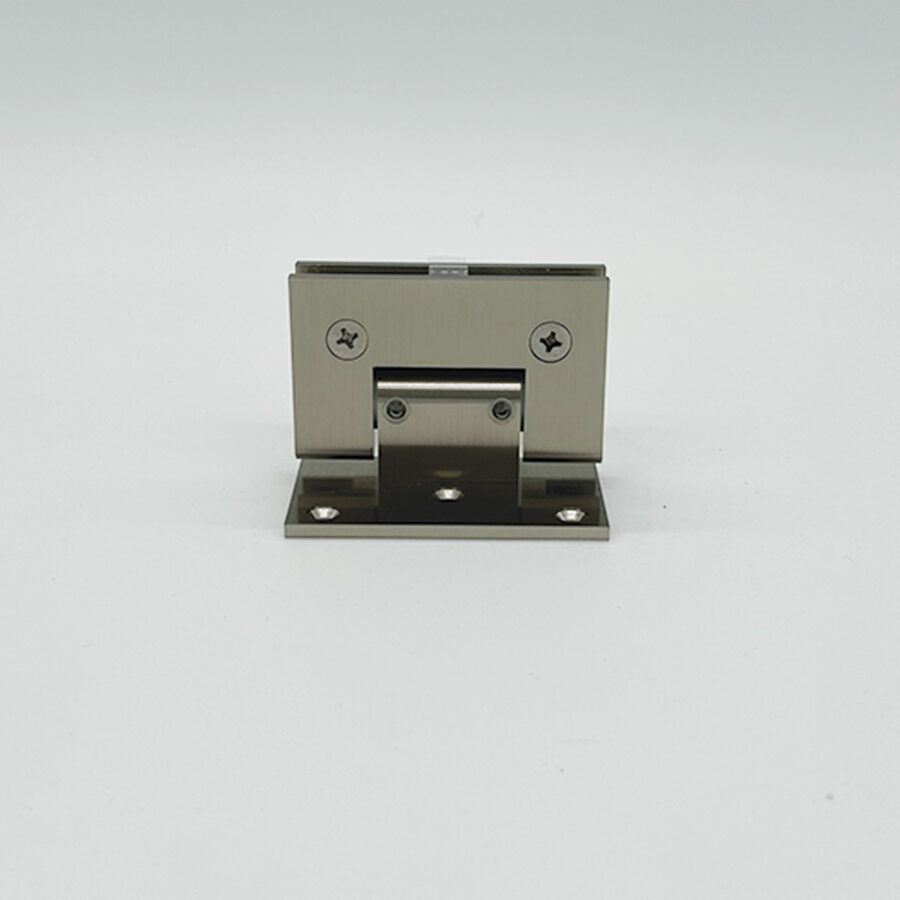

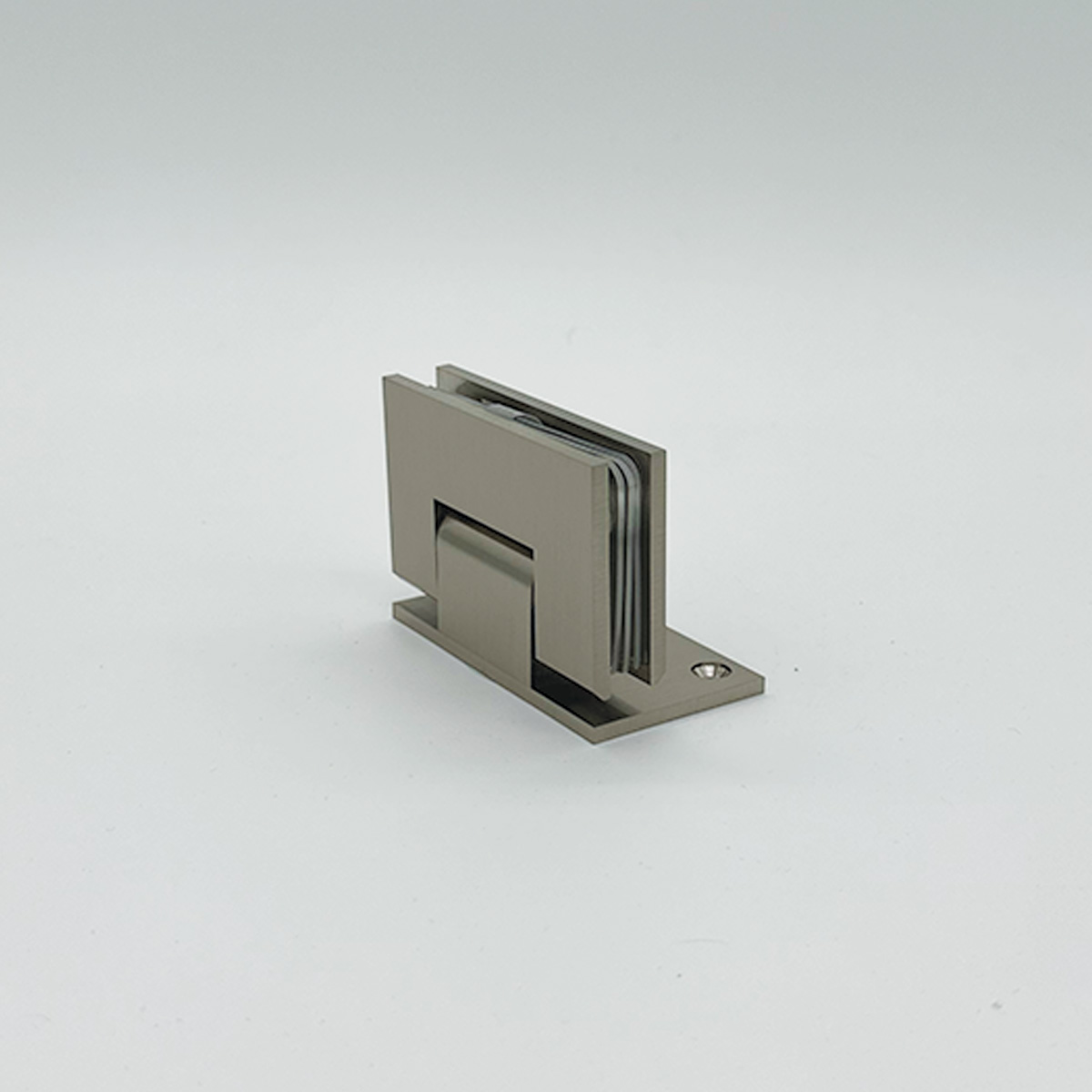

Adjustable Glass to Wall Hinge

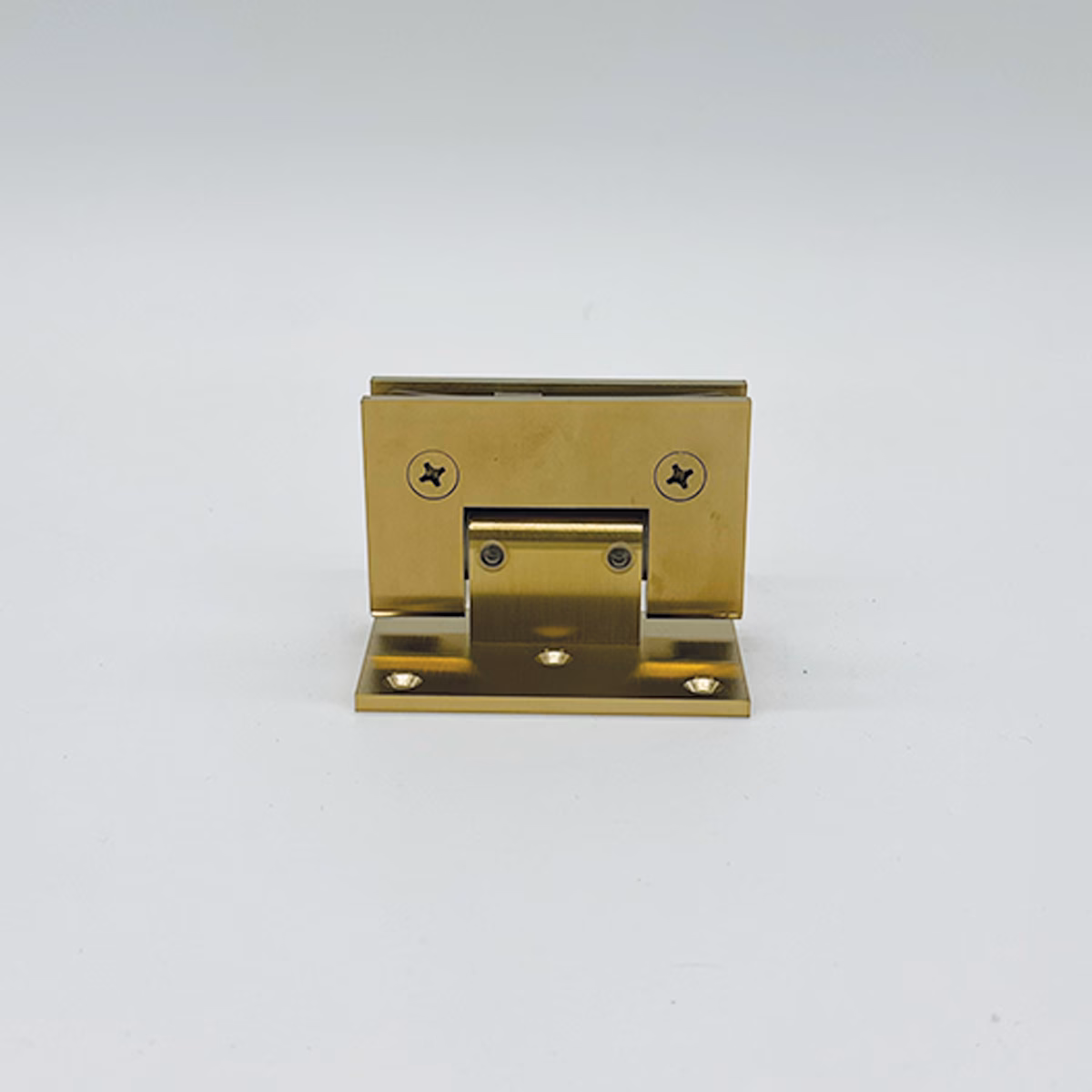

Adjustable Glass to Wall Hinge - Image 2
Adjustable Glass to Wall Hinge - Image 3

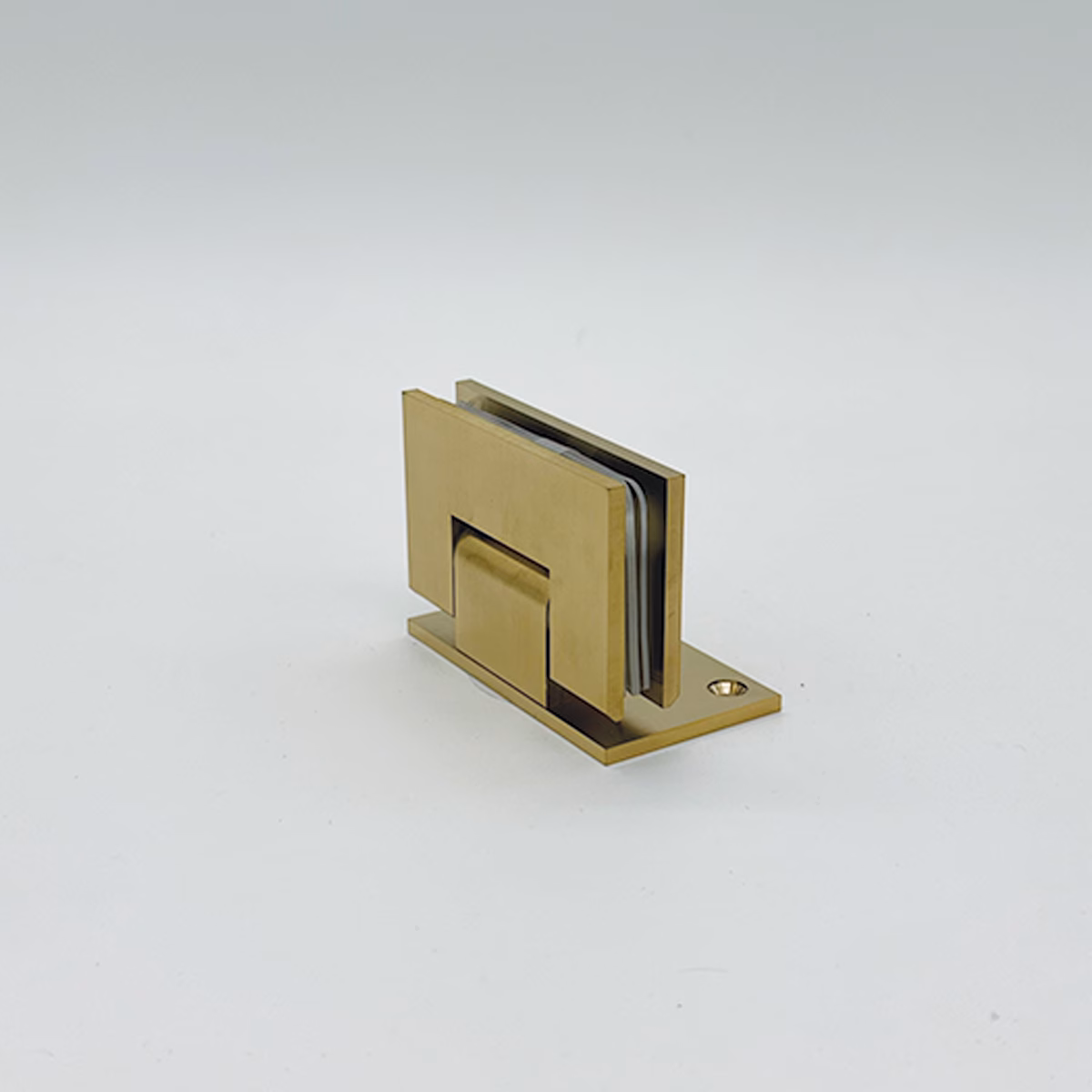

Adjustable Glass to Wall Hinge - Image 4

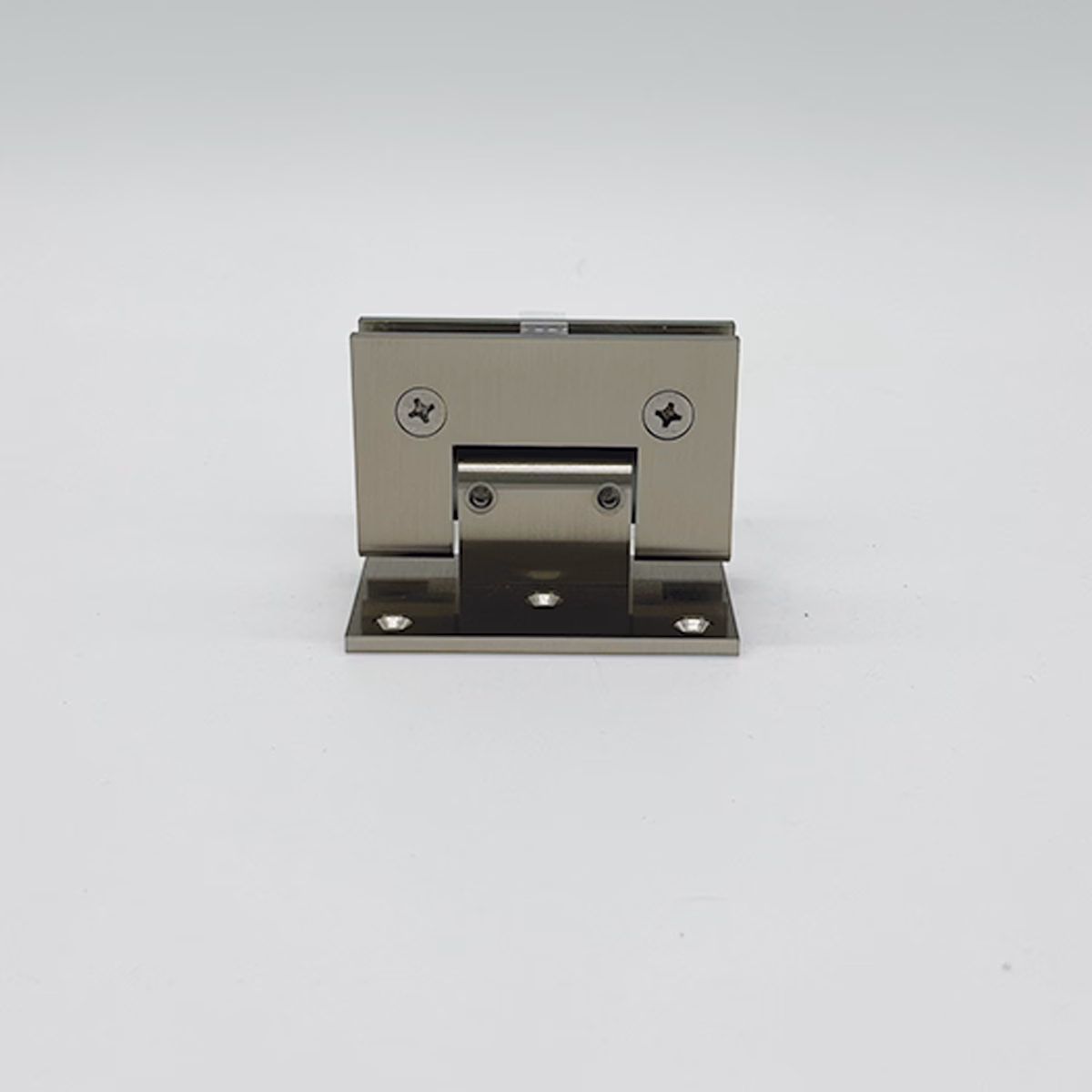

Adjustable Glass to Wall Hinge - Image 5
Adjustable Glass to Wall Hinge - Image 6
Adjustable Glass to Wall Hinge - Image 7

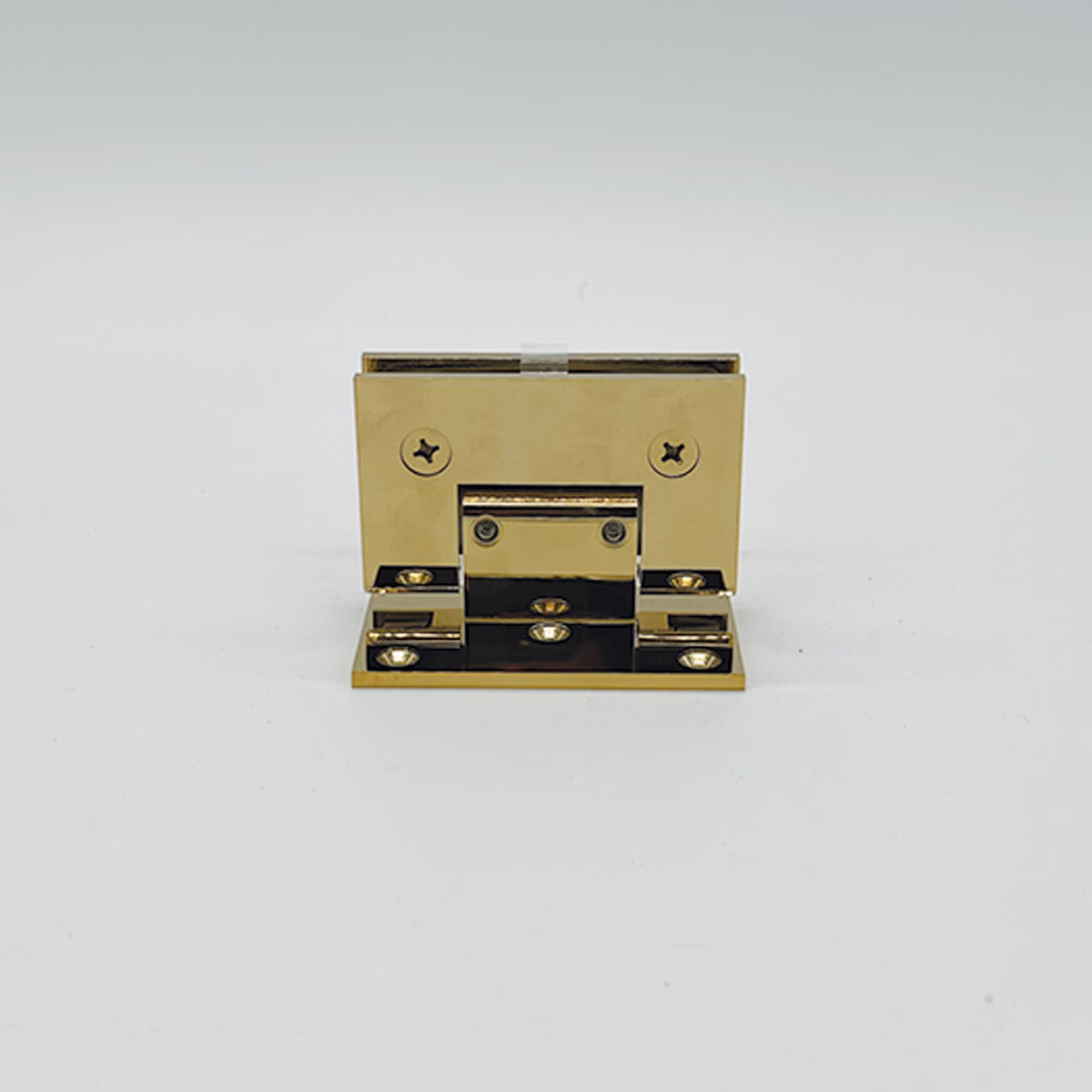

Adjustable Glass to Wall Hinge - Image 8
Adjustable Glass to Wall Hinge - Image 9

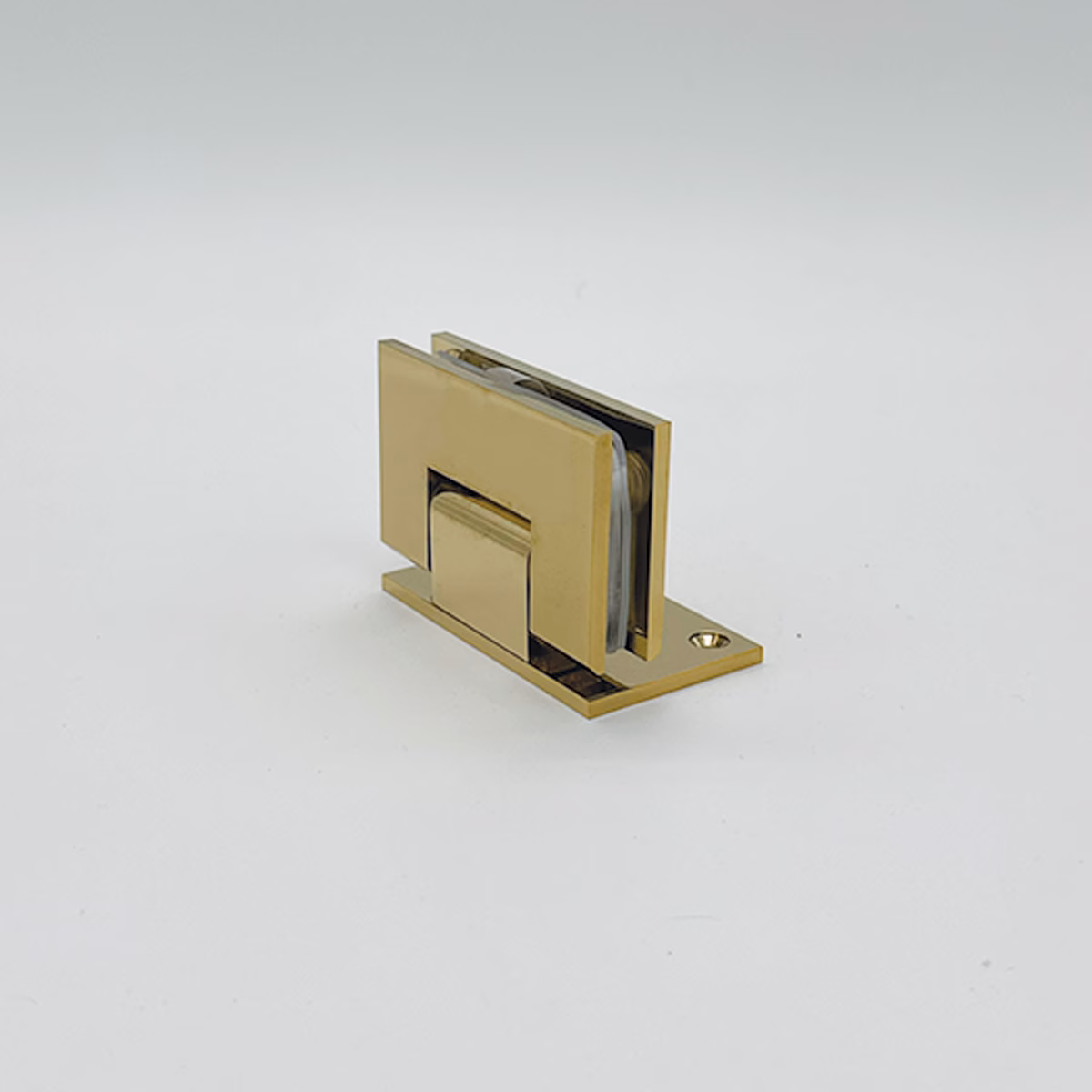

Adjustable Glass to Wall Hinge - Image 10

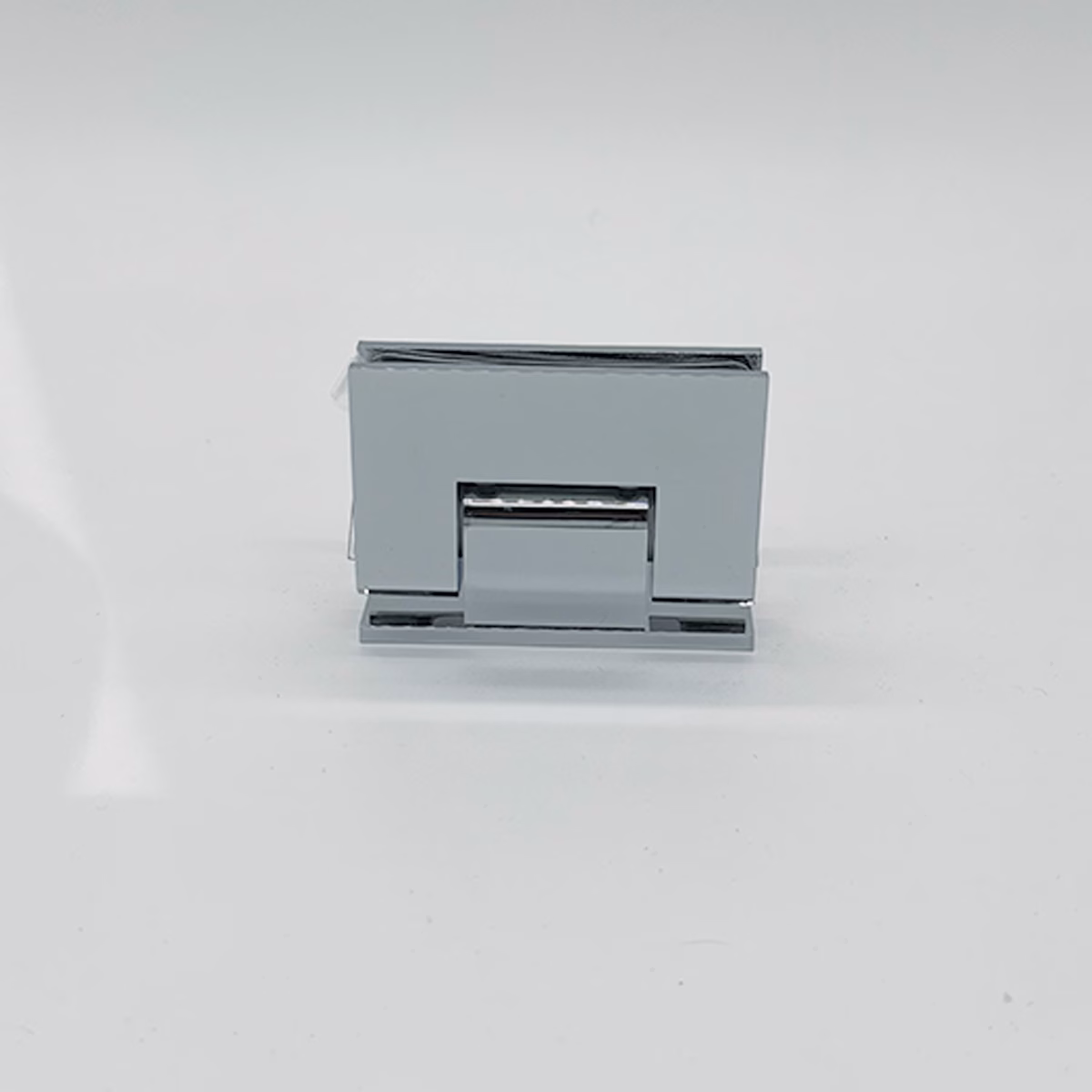

Adjustable Glass to Wall Hinge - Image 11
Adjustable Glass to Wall Hinge - Image 12

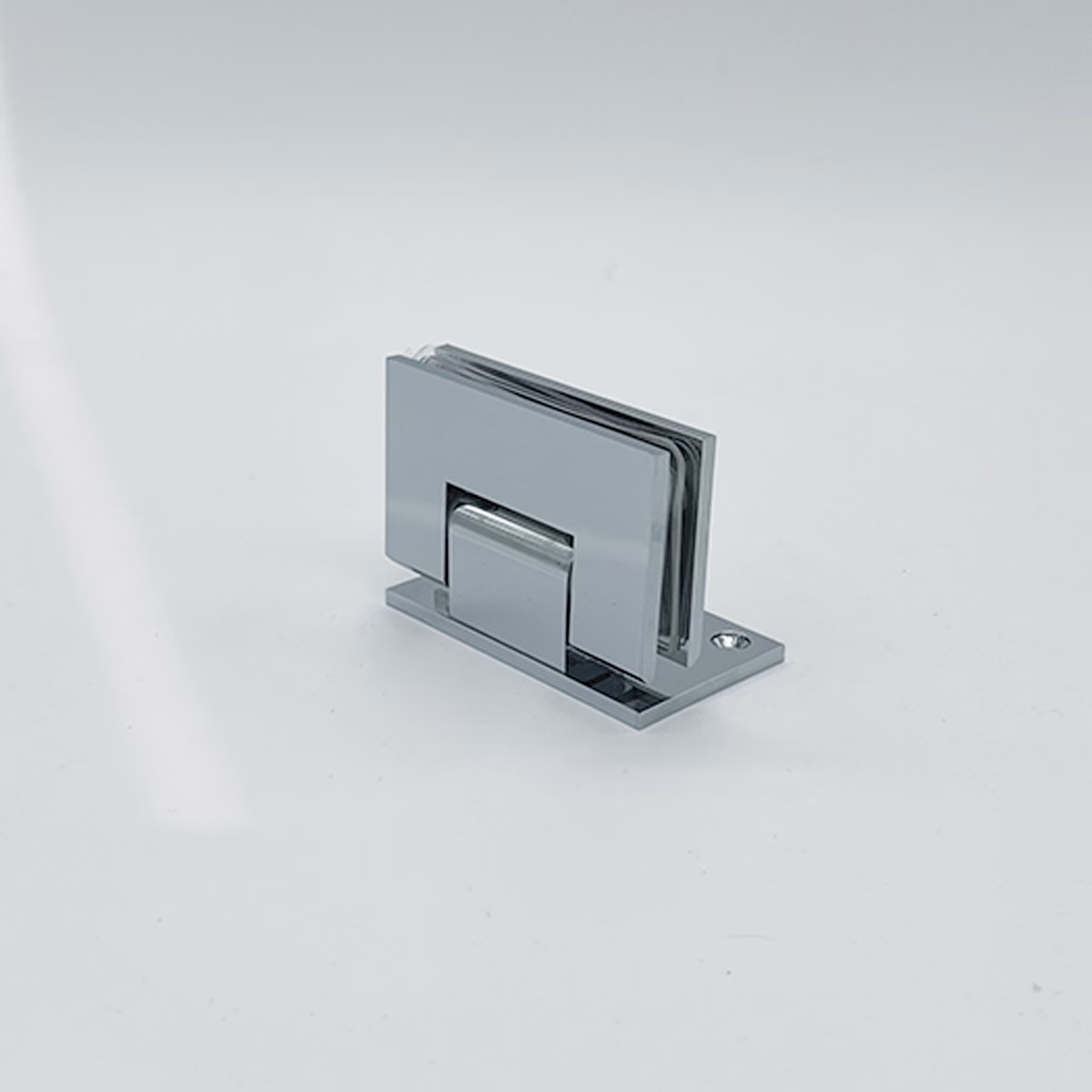

Adjustable Glass to Wall Hinge - Image 13

Adjustable Glass to Wall Hinge

From £48.00 inc. VAT

Quantity

Product Description

Wall Mounted, Glass Door Hinge. 90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees.

Product Includes necessary Allen Keys and Glazing Washers.

Product Dimensions

64mm(w) x 90mm(h), with 32mm(d) biased Fixing Plate

Glass Specification

Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (please see product drawings)

Material Specification

All Components in Brushed Nickel Plated Brass

Environment Compatibility

Suitable for indoor and outdoor use (not suitable for marine environments).

Design Compatibility

Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.

Hinge Capacity

  • Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
  • Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
  • Clamping screws to be tightened to 8-10 Nm

Product Additional information
Colour

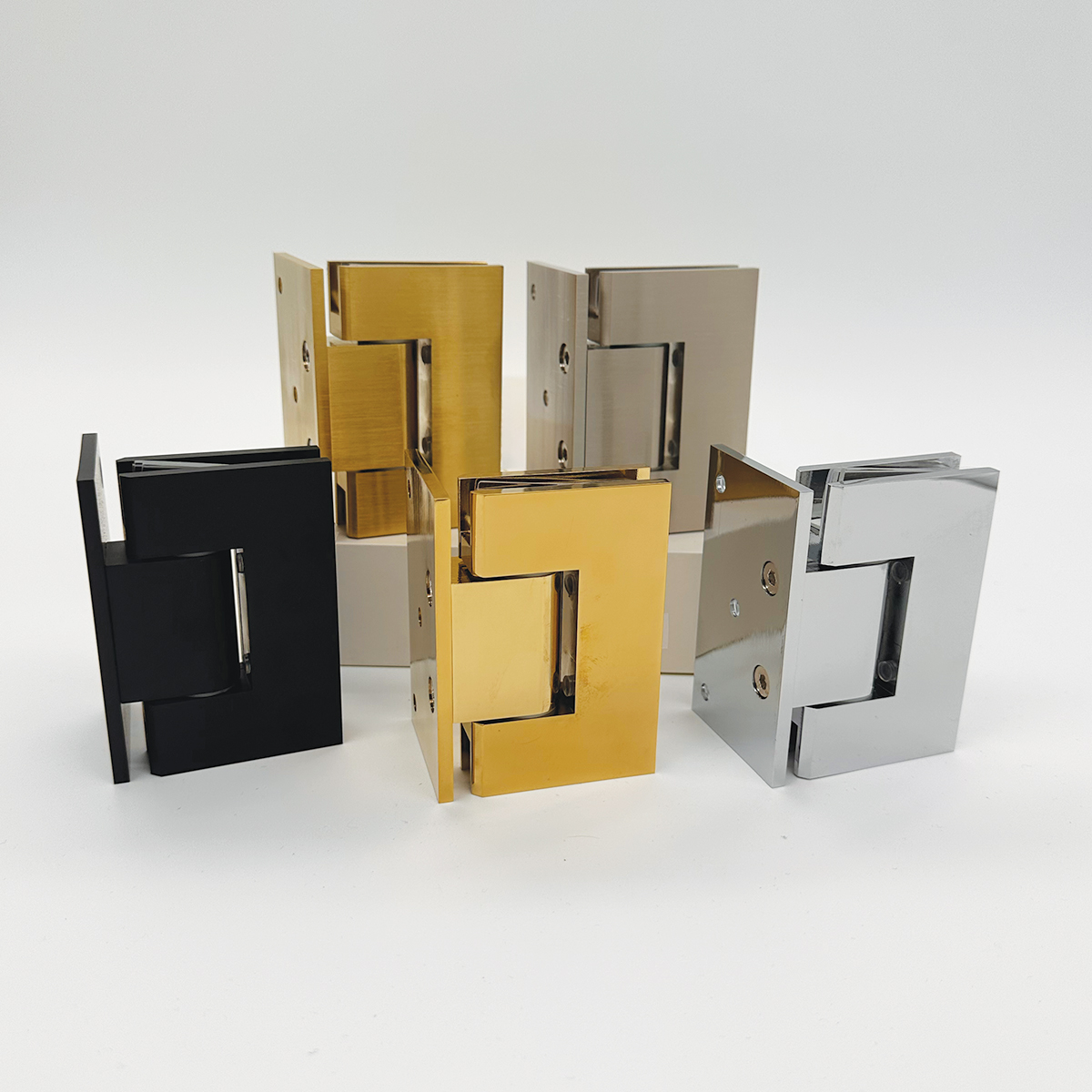

Black, Brushed Brass, Brushed Chrome, Polished Brass, Polished Chrome

Product Downloads

Product Enquiry

    Accept GDPR policy to send email (required)
    SKU: HI-1019 Category:
