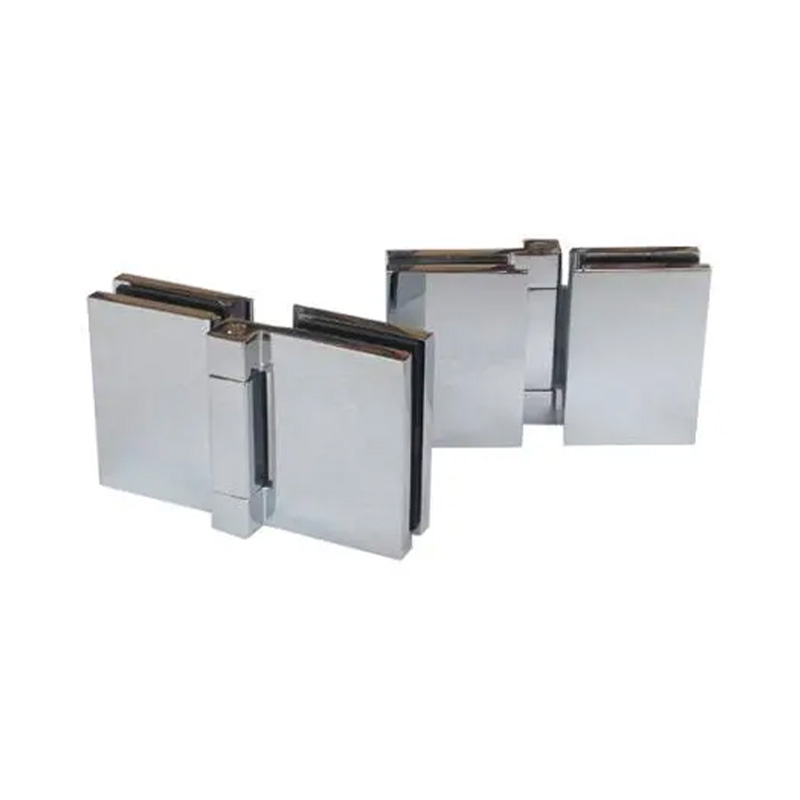

Brushed Finish Glass to Glass Free Pivot Hinge Concealed Fixings

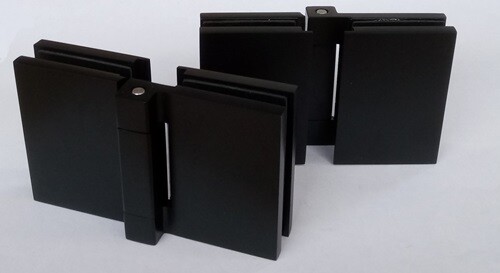

Black glass to glass hinges with concealed fixings
Glass to Glass Free Pivot Hinge Concealed Fixings

Glass to Glass Free Pivot Hinge Concealed Fixings (Single)

From £61.80 inc. VAT

Quantity

Product Description

Glass to Glass Fold Back Hinge with cover plates to hide all fixings. Product includes necessary Hardware and Glazing Gaskets

Product Dimensions

114mm (w) x 70mm (h) including covers

Glass Specification

Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (please see product drawings)

Material Specification

All Components in Chrome Plated Brass

Environment Compatibility

Suitable for indoor and outdoor use (not suitable for marine environments).

Design Compatibility

Suitable for Shower Enclosures, Wet Rooms, Glass Doors, Balustrade Gates.

Hinge Capacity

  • Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
  • Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
  • Clamping screws to be tightened to 8-10 Nm

Product Additional information
Colour

Black, Brushed Chrome, Polished Chrome

Product Downloads

Product Enquiry

    Accept GDPR policy to send email (required)
    SKU: HI-1009 Category:
