50mm Partitioning Head Channel (Including 2 x Gaskets)

Product Number: QIC/SG50


  • Express Delivery available on this product.
  • This product is manufactured in the UK.
  • Polished edges included.

Please Select The Colour Below


Or enter a colour of your choice

Not sure about your colour code?

You can find relevant colour codes for different providers using the links below:

Dulux Pantone Ral Crown Farrow Ball Laura Ashley

Please Select The Thickness Below

For express 24/48 hour delivery, call 020-8500-1188

Your Order Subtotal:

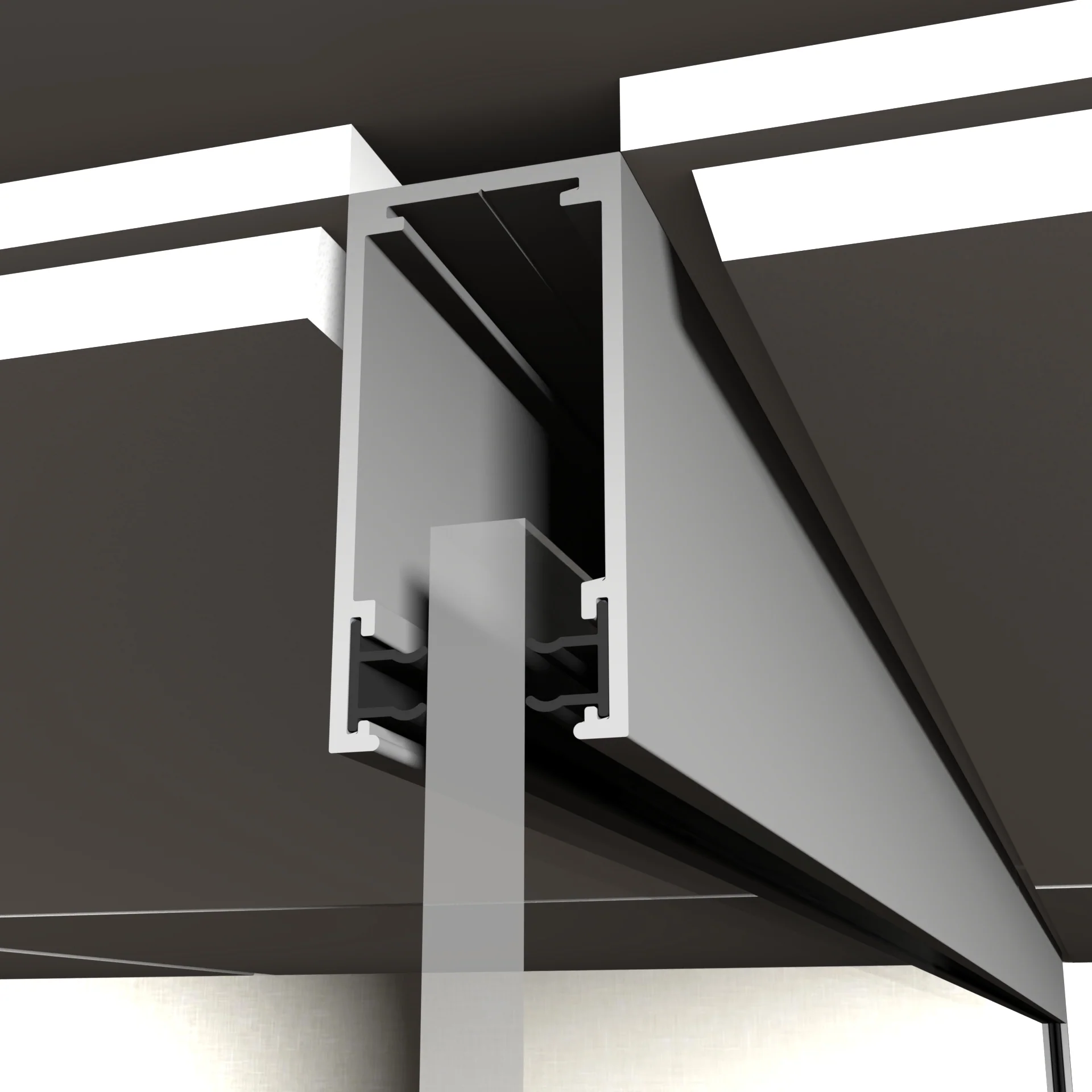

Elevate your interiors with the single glazed aluminium 50mm partitioning head channel, specifically crafted for modern glass partitions. Measuring at 25mm x 25mm x 3000mm, this channel is the perfect combination of style and functionality. Tailored for glass between 10 and 12mm thick, it ensures a snug and secure fit.

Despite its sleek design, it boasts impressive strength, guaranteeing a reliable and sturdy fix for your glass installations. To cater to extended glass runs, the channel features convenient cleat slots.

Functionality aside, it has also been acoustically tested, promising superior sound insulation properties. It is available in four RAL stock colours; Blac, White, Silver, and Anthracite Grey, giving you the freedom to select the best fit for your decor needs.

It?s worth noting that for frameless glass doorways, a separate blanking plate will be required for top pivot fixtures. 2 gaskets included.

50mm Partitioning Head Channel Features:

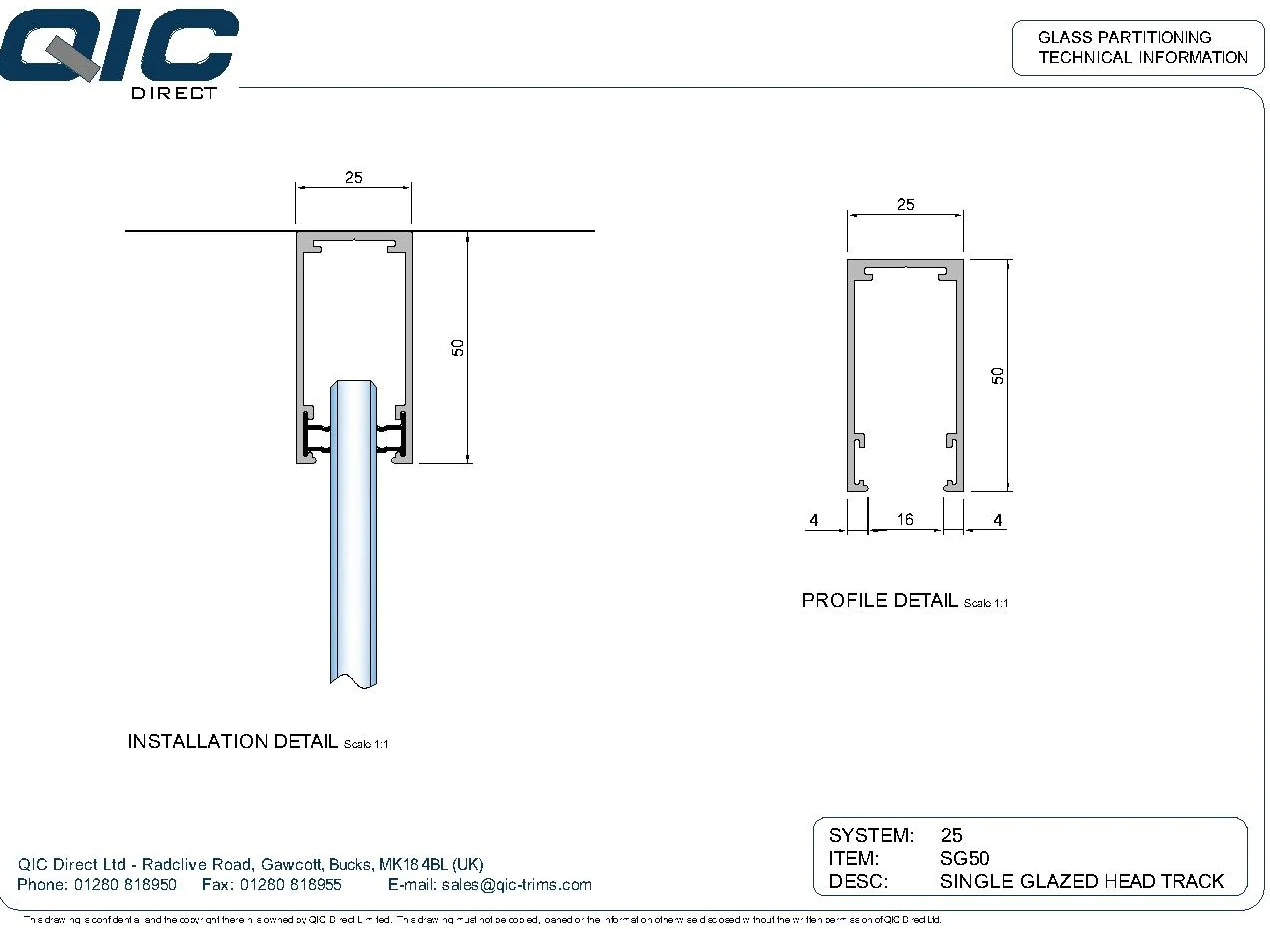

  • Dimensions: Precisely measured at 50mm x 25mm x 3000mm.
  • Glass Compatibility: Perfectly fits glass thicknesses between 10mm and 12mm.
  • Strength & Design: Lightweight construction, yet remarkably strong for secure fixing.
  • Extended Runs: Features cleat slots for accommodating longer glass runs.
  • Acoustic Benefits: Acoustically tested to ensure superior sound insulation.

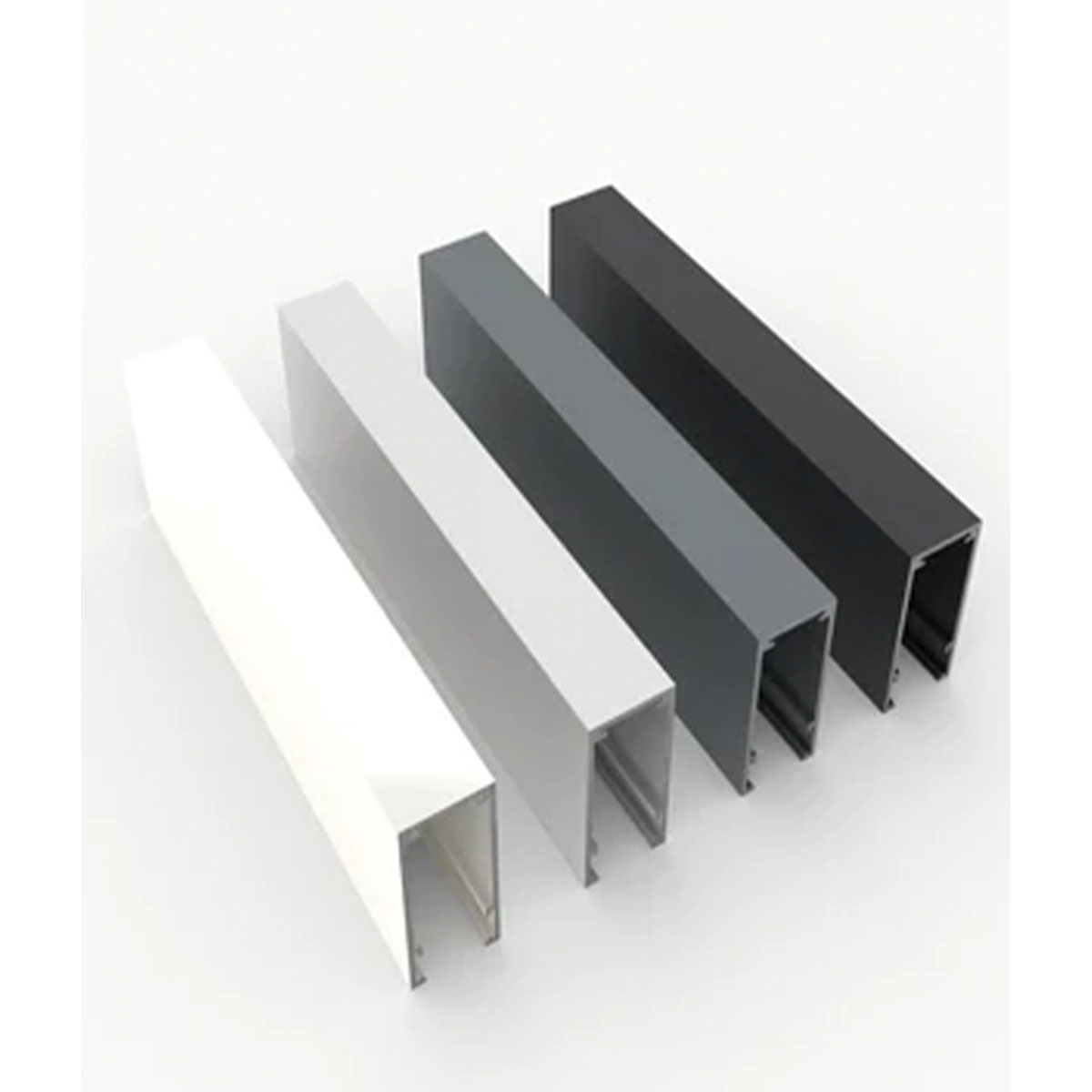

  • Colour Varieties: Black, White, Silver, Anthracite Grey.
  • Doorway Consideration: A blanking plate is necessary for top pivot fixtures in frameless glass doorways.
  • Accessory Information: 2 x gaskets included.
