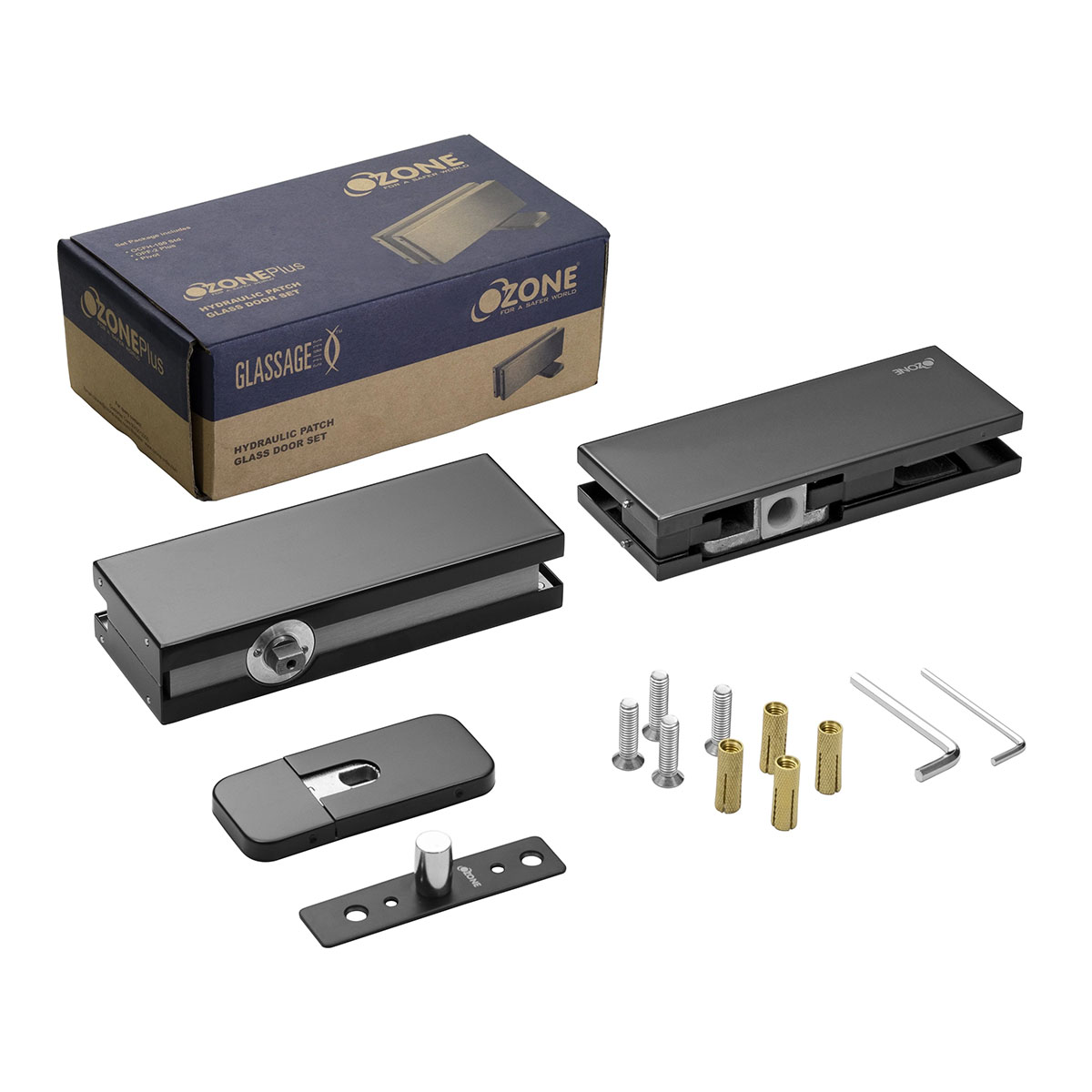

Black Hydraulic Patch Set For Glass Door

Product Number: QIC/HW00081/HW00084/HW00097



Elevate your glass door installations with our black hydraulic patch set for glass doors. This state-of-the-art hydraulic system is meticulously designed to seamlessly blend functionality with elegance.

Among its standout features is the inclusion of both a top pivot plate and a top patch, with the flexibility to choose your preferred top patch size. Meeting the EN 1154 standards, this set is a testament to quality and reliability. Built to support glass doors weighing between 60-100 kg and up to 1000 mm in width, it accommodates a range of installation needs. It’s tailored for glass thicknesses of 10 to 12 mm.

The system ensures that doors can be opened to a maximum of 150? and controlled to 135?, offering flexibility in use. The dual swing action, accompanied by two-speed adjustments for both closing and braking, promises smooth operation. With an opening cycle tested to 500,000, it?s built to last. What sets this hydraulic patch set apart is its fitting alignment adjustment, allowing a +3mm shift in four directions, ensuring perfect positioning.

Quick and easy installations are guaranteed, as there’s no need for floor digging or cutting. Crafted from stainless steel 304 standard material, the set also includes quick-release cover plate fasteners. The sleek black colour seamlessly complements any modern interior. Designed specifically for glass doors, this hydraulic patch set is the perfect hold-open solution. An installation guide is conveniently available at this link to ensure smooth and correct installation.

Black Hydraulic Patch Set Features:

  • Components: Top pivot plate & top patch with a choice of top patch sizes.
  • Compliance: Meets EN 1154 standards.
  • Capacity: Supports doors weighing 60-100 kg, up to 1000 mm in width.
  • Glass Thickness Compatibility: 10 to 12 mm.
  • Door Movement: Maximum opening of 150?, controlled to 135?.
  • Functionality: Dual swing action with two-speed adjustments.
  • Durability: Tested for an opening cycle of 500,000.
  • Adjustability: +3mm fitting alignment in four directions.
  • Easy Installation: No floor digging or cutting required.
  • Material: Premium stainless steel 304 standard with quick-release fasteners.
  • Colour: Black. Also available in stainless steel
  • Door Type: Specifically for glass doors.
  • Options: Available in hold open & non-hold options.
