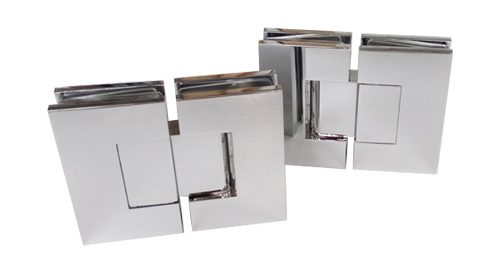

Inline Glass to Glass Hinge with Concealed Fixings
Product Number: 9641SH - NKE - H02
Product Description
90 Degree Opening in Both Directions, with Automatic Closing when open less than 25 degrees. Product Includes necessary Glazing Washers.
Product Dimensions
114mm (w) x 90mm (h)See Technical Drawing£57.60
Glass Specification
Suitable for 8 to 10mm Toughened Glass. Glass Preparation & Reduction Required (please see product drawings)
Material Specification
All Components in Chrome Plated Brass
Environment Compatibility
Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for Shower Enclosures, Wet Rooms, Bath Screens, and Glass Doors.
Hinge Capacity
- Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
- Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
- Clamping screws to be tightened to 8-10 Nm
