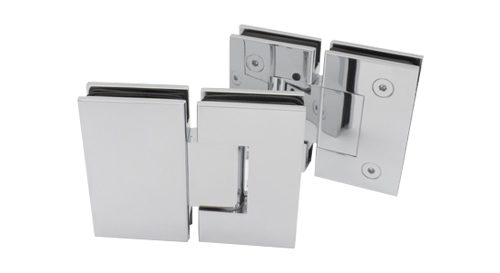

Polished Chrome Adjustable Glass to Glass Hinge
Product Number: 119SH - NKE - 4273
Product Description
Glass to glass hinge, 90 Degree opening in both directions with automatic closing when open less than 25 degrees.
Product Dimensions
115mm(w) x 90mm(h)See Technical Drawing£61.56
Glass Specification
Suitable for 8 to 10mm Toughened Glass. Glass preparation & reduction required (please see product drawings).
Material Specification
- All visible components in chrome plated brass.
Environment Compatibility
- Suitable for indoor and outdoor use (not suitable for marine environments).
Design Compatibility
Suitable for shower enclosures, wet rooms, bath screens, and glass doors.
- For 8mm glass we recommend our seal SH/GGA/S16
- For 10mm glass we recommend our seal SH/GGA/S16/10
Hinge Capacity
- Using 2 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 45kg
- Using 3 hinges per door: Maximum Door Width 900mm, Maximum Door Weight 57kg
- Clamping screws to be tightened to 8-10 Nm
